Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: LSB-LC

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Circular Linear Roller Guide Rail

,

Cnc Linear Roller Guide Rail

,

Cnc Linear Roller Rail Systems

Material:
Bearing Steel/GCR15/Chrome Steel
Straightness:
Not Exceed 5um Of 1000mm
Roundness:
Within 3.0um
Hardness:
HRC58-60, HRC60+2
Application:
Machinery
Type:
Linear Motion Guideway
Material:
Bearing Steel/GCR15/Chrome Steel
Straightness:
Not Exceed 5um Of 1000mm
Roundness:
Within 3.0um
Hardness:
HRC58-60, HRC60+2
Application:
Machinery
Type:
Linear Motion Guideway
Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems

Circular Linear Roller Guide Rail Bearing cnc guideway bearing linear rolling guideway grinder

Bearing:Aluminum support rail /Shaft support rail / Round Linear Guide :



Round Linear Guide Types:

(1),SBR-C12,SBR-C13,SBR-C16,SBR-C20,SBR-C25,SBR-C30,SBR-C35,SBR-C40,SBR-C50;

(2),TBR-C16,TBR-C20,TBR-C25,TBR-C30.



Linear Slide Block Bearings:

(1)SBR12UU/LUU,SBR13UU/LUU,SBR16UU/LUU,SBR20UU/LUU,SBR25UU/LUU,SBR30UU/LUU

SBR40UU/LUU,SBR50UU/LUU;

(2)TBR16UU/LUU,TBR20UU/LUU,TBR25UU/LUU,TBR30UU/LUU



Product Features:

A. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system;



B. The driving power is small, which reduces the energy consumption;



C. High positioning accuracy and repeat positioning accuracy;



D. By increasing the preload, the rigidity is greatly enhanced;



E. Using paired guide rais, it has the effect of homogenizing error;



F. Can withstand the load from up and down or so;



G. The end and the side can be manual or automatic lubricated through oil cup;



H. It has simplified the design and manufacture of mechanical structure, therefore reduced the manufacturing cost.



Specifications

LSA-A / LSA-LA Series

High Assembly Linear Machine Tool Guideways Square Type Slider Block

Model Dimensions Slider size

Height

H

Width

W

Length

L

W2 H2 B C S*l L1 T T1 N G K d1 Nozzle specification
LSA 15 A 24 47 56.3 16 4.7 38 30 M5*11 39.3 7 11 4.3 7 3.2 3.3 G-M4

LSA 20 A

LSA 20 LA

30 63

72.9

88.8

21.5 4 53 40 M6*10

51.3

67.2

7 10 5 12 5.8 3.3 G-M6

LSA 25 A

LSA 25 LA

36 70

81.6

100.6

23.5 5.5 57 45 M8*16

59

78

11 16 6 12 5.8 3.3 G-M6

LSA 30 A

LSA 30 LA

42 90

97

119.2

31 7 72 52 M10*18

71.4

93.6

11 18 7 12 6.5 3.3 G-M6

LSA 35 A

LSA 35 LA

48 100

111.2

136.6

33 7.5 82 62 M10*21

81

106.4

13 21 8 11.5 8.6 3.3 G-M6

LSA 45 A

LSA 45 LA

60 120

137.7

169.5

37.5 10 100 80 M12*25

102.5

134.3

13 25 10 13.5 10.6 3.3 G-PT1/8
Model Rail size Basic load rating Allowable static moment Weight

Height

H

Width

W

Pitch

P

E

std

D*h*d

Dynamic load C

KN

Static load C0

KN

MP

KN*m

MY

KN*m

MR

KN*m

Slider

KG

Guide

KG/m

Single * Double* Single * Double*
LSA 15 A 15 15 60 20 7.5*5.3*4.5 11.8 18.9 0.12 0.68 0.12 0.68 0.14 0.18 1.5

LSA 20 A

LSA 20 LA

20 18 60 20 9.5*8.5*6

19.7

23.3

29.5

39.3

0.23

0.39

1.42

2.23

0.23

0.39

1.42

2.23

0.29

0.38

0.4

0.52

2.4

LSA 25 A

LSA 25 LA

23 22 60 20 11*9*7

28.1

34.4

42.4

56.6

0.39

0.67

2.20

3.52

0.39

0.67

2.20

3.52

0.48

0.63

0.62

0.82

3.4

LSA 30 A

LSA 30 LA

28 26 80 20 14*12*9

39.2

47.9

57.8

77.0

0.62

1.07

3.67

5.81

0.62

1.07

3.67

5.81

0.79

1.05

1.09

1.43

4.8

LSA 35 A

LSA 35 LA

34 29 80 20 14*12*9

52.0

63.6

75.5

100.6

0.93

1.60

5.47

8.67

0.93

1.60

5.47

8.67

1.25

1.67

1.61

2.11

6.6

LSA 45 A

LSA 45 LA

45 38 105 22.5 20*17*14

83.8

102.4

117.9

157.3

1.81

3.13

10.67

16.95

1.81

3.13

10.67

16.95

2.57

3.43

2.98

3.9

11.5

Note: Requirements for specifications 55 and 65, please use LSA-B/LSA-LB model.

Note*: Single: single slider Double: double slide tightly arranged.

Note: The basic rated fatigue life of ball rolling linear guide is C 50km. If the C of the rated fatigue life of 50km is converted to 100km, its C100 can be used in the lower form C=C100*1.26.


Linear guide advantages :



A. High rigidity and high load



B.Smooth running, low noise and non-pollution



C.High accurancy & easy setting up



Application:
Electronic equipment, tensile testing machine and the digital three dimensional coordinate measuring equipment,
Precision equipment, and multi-axis machine tools, presses, tool grinder, automatic gas cutting machine,
Printer, card sorting machine, food packing machines and other industrial machinery sliding components

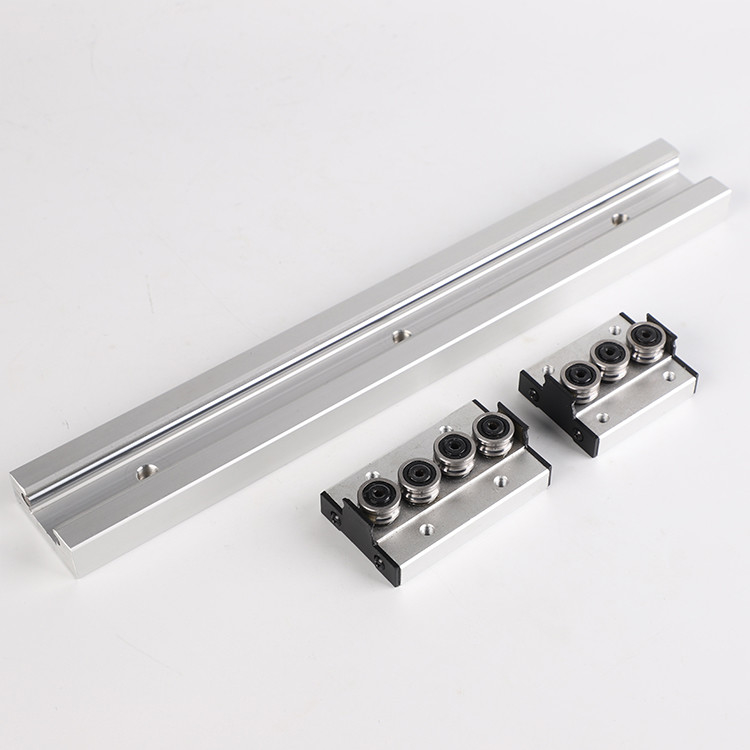

Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems 1Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems 2Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems 3Circular Linear Roller Guide Rail Bearing Cnc Linear Roller Rail Systems 4
