Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 6004
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Number Of Row: |
Single Row |
Bore Size: |
1 - 20 Mm |
Material Of Balls: |
Si3N4 Ceramic Balls |
Size: |
40*42*12mm |
Cage: |
Steel Cage.nylon Cage |
Material: |
Chrome Steel Stainless Steel, Hybrid Ceramic |
Number Of Row: |
Single Row |
Bore Size: |
1 - 20 Mm |
Material Of Balls: |
Si3N4 Ceramic Balls |
Size: |
40*42*12mm |
Cage: |
Steel Cage.nylon Cage |
Material: |
Chrome Steel Stainless Steel, Hybrid Ceramic |

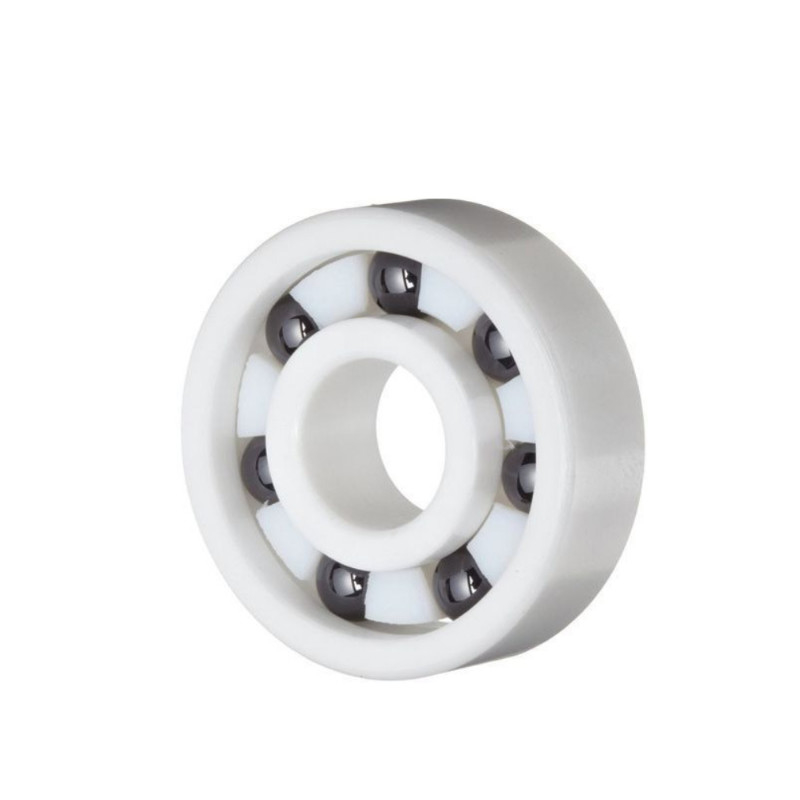

Hot Sale Large inventory hybrid ceramic bearing 6004 with SI3N4 Ceramic ball
Full Ceramic Bearing :
Full Ceramic Bearings are made entirely of ceramic material and are superior to common steel bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM’s, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present. Applications such as cryopumps, medical devices, semiconductors, machine tools, turbine flow meters, food processing equipment, robotics and optics. Ceramic materials commonly used for bearings are Silicon Nitride (Si3N4), Zirconia Oxide (ZrO2), or Silicon Carbide (SiC.)
Ceramic Balls:
We are special in making Silicone Nitride Balls (Si3N4 Balls), Zicronia Balls (ZrO2 Balls),Sic Ceramic Balls, Aluminum Oxside Valve (AI203) ceramic balls.
Compared with steel, ceramic materials are noted for their better or particular characters, such as wear-resistance, corrosion resistance, high temperature resistance, electrical insulation (except SiC), non-magnetic, high strength, high rigidity, and low specific gravity. These properties qualify them for replacing steel to make bearings serve in conditions of higher speed, harsh environment and less lube, and decrease wear, noise, vibration and maintenance time of bearings, and eventually increase performance, reliability and life of bearings.
Micro Bearing/ Miniature Bearing Series: Metric & Inch
Bearing No |
(d) |
(D) |
(b) | Limiting Speed | |
| open | Grease | Oil | |||
| *1000rpm | |||||
| MR63zz Bearing | 3 | 6 | 2 | 71 | 80 |
| 683zz Bearing | 7 | 2 | 63 | 75 | |
| 693zz Bearing | 8 | 3 | 60 | 67 | |
| 603zz Bearing | 9 | 3 | 56 | 67 | |
| 623zz Bearing | 10 | 4 | 50 | 60 | |
| MR74zz Bearing |
4 |
7 | 2 | 60 | 67 |
| 694zz Bearing | 11 | 4 | 48 | 56 | |
| 604zz Bearing | 12 | 4 | 48 | 56 | |
| 624zz Bearing | 13 | 5 | 40 | 48 | |
| 634zz Bearing | 16 | 5 | 36 | 43 | |
| MR85zz Bearing | 5 | 8 | 2 | 53 | 63 |
| 685zz Bearing | 11 | 3 | 45 | 53 | |
| 695zz Bearing | 13 | 4 | 43 | 50 | |
| 605zz Bearing | 14 | 5 | 40 | 50 | |
| 625zz Bearing | 16 | 5 | 36 | 43 | |
| 635zz Bearing | 19 | 6 | 32 | 40 | |
| MR106zz Bearing | 6 | 10 | 2.5 | 45 | 53 |
| 696zz Bearing | 15 | 5 | 40 | 45 | |
| 606zz Bearing | 17 | 6 | 38 | 45 | |
| 626zz Bearing | 19 | 6 | 32 | 40 | |
| 636zz Bearing | 22 | 7 | 30 | 36 | |
| MR117zz Bearing | 7 | 11 | 2.5 | 43 | 50 |
| 687zz Bearing | 14 | 3.5 | 40 | 50 | |
| 697zz Bearing | 17 | 5 | 36 | 43 | |
| 607zz Bearing | 19 | 6 | 36 | 43 | |
| 627zz Bearing | 22 | 7 | 30 | 36 | |
| 637zz Bearing | 26 | 9 | 28 | 34 | |
| MR128zz Bearing | 8 | 12 | 2.5 | 40 | 48 |
| 688zz Bearing | 16 | 4 | 36 | 43 | |
| 698zz Bearing | 19 | 6 | 36 | 43 | |
| 608zz Bearing | 22 | 7 | 34 | 40 | |
| 628zz Bearing | 24 | 8 | 28 | 34 | |
| 638zz Bearing | 28 | 9 | 28 | 34 | |
| 679zz Bearing | 9 | 14 | 3 | 36 | 42 |
| 689zz Bearing | 17 | 4 | 36 | 43 | |
| 699zz Bearing | 20 | 6 | 34 | 40 | |
| 609zz Bearing | 24 | 7 | 32 | 38 | |
| 629zz Bearing | 26 | 8 | 28 | 34 | |
| 639zz Bearing | 30 | 10 | 24 |
30 |
|
