Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 15267-2RS
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Bore Size: |
3 - 100 Mm |
Lubrication: |
Self Lubricant |
Material Of Balls: |
Si3N4 Ceramic Balls |
Size: |
15*26*7mm |
Cage: |
Stainless Steel |
Seals Type: |
2RS |
Bore Size: |
3 - 100 Mm |
Lubrication: |
Self Lubricant |
Material Of Balls: |
Si3N4 Ceramic Balls |
Size: |
15*26*7mm |
Cage: |
Stainless Steel |
Seals Type: |
2RS |

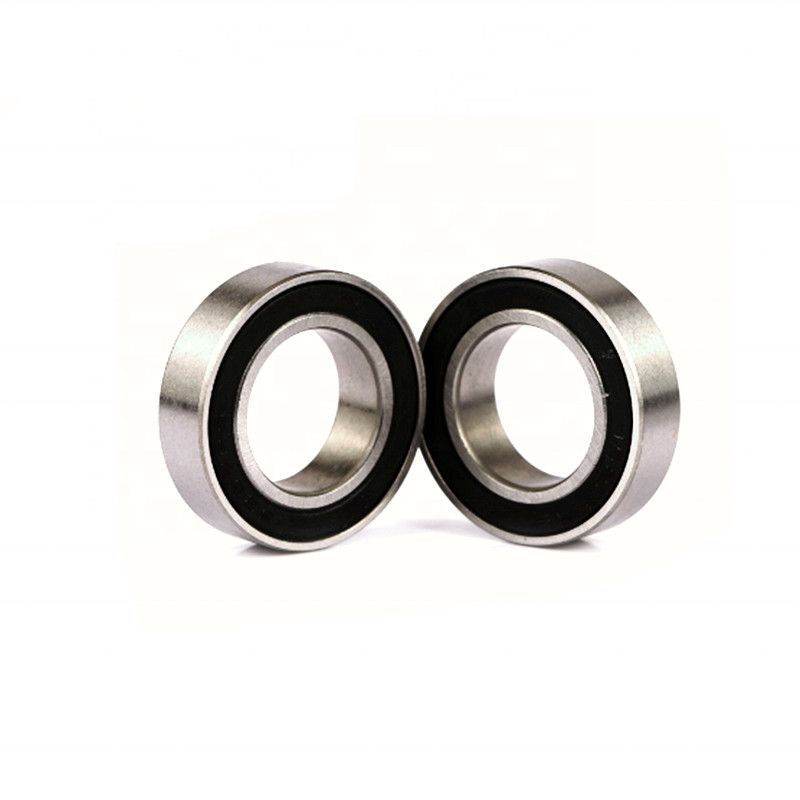

Hybrid Ceramic Bearing Stainless Steel S15267-2RS
Thin section deep groove ball bearing
1) Bearing type: 6700,6800, 6900, R and 16series
2) Bore diameter range: 4mm to 100mm
3) Material: AISI52100, AISI440C
4) Shield/closure: Z ZZ 2RS RS/open
5) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7
6) Vibration level codes: V4, V3, V2, V1
7) Internal clearance codes: C0, C2, C3, C4, C5
8) Packing: Plastic tube packing or individual box packing
Bike front hub bearing: bearing steel, double seal. Bearing with low noise grease fill and stable performance. Applicable for Chin Haur(CH) Disc/HH series hubs & A2Z XCR/XCF series hubs,Welcome to purchase
Note:
The clearance of the bearing is related to the play.
The default is the standard C0 clearance, which is usually 3-18um.
The corresponding principle is shown in the figure below.
If you don't need to shake, please choose C2 small clearance bearing
If you have any questions, please contact us before purchasing.
