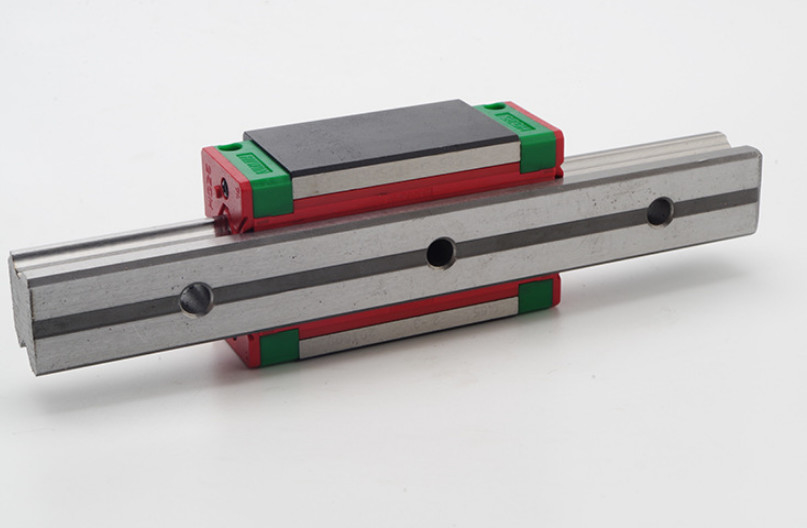

HGR Series HGH15CA HGW15CC Ball Lm Guideways Low Profile

good quality HGR series HGH15CA HGW15CC low profile ball lm guide linear guideway

Product Description

Linear guideways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 1/50 compared to a traditional slide and are able to take loads in all directions.



With these features, a linear guideway can achieve high precision and greatly enhanced moving accuracy. Hiwin Corporation offers multiple linear guideway series and each series features different options for sizes, loading capabilities, accuracies, and more.



  Feature

(1) High positioning accuracy
When the linear guide is used as the linear guide, since the friction of the linear guide is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but also the difference between the dynamic friction and the static friction is small. Therefore, when the bed is running, there is no slippage, and the positioning accuracy of μm can be achieved.

(2) less wear
The traditional sliding guide will inevitably cause poor platform motion accuracy due to the reverse flow of the oil film, and the lubrication will not be sufficient due to the movement, resulting in the wear of the running track contact surface, which seriously affects the accuracy. The wear of the rolling guide is very small, so the machine can maintain accuracy for a long time.

(3) High-speed motion low-power horsepower
Since the friction of the linear guide is very small, the bed can be operated with less power, especially when the bed works in a regular round-trip operation, and the power loss of the machine can be significantly reduced.







Model Physical dimension Block dimension
H H1 N W B B1 C  L1 L K1 K2 G M x L T H2 H3
HGH 15CA 28 4.3 9.5 34 26 4 26 39.4 61.4 10 4.85 5.3 M4x5 6 7.95 7.7
HGH 20CA 30 4.6 12 44 32 6 36 50.5 77.5 12.25 6 12 M5x6 8 6 6
HGH 20HA 50 65.2 92.6 12.6
HGH 25CA 40 5.5 12.5 48 35 6.5 35 58 84 16.8 6 12 M6x8 8 10 9
HGH 25HA 50 78.6 104.6 19.6
HGH 30CA 45 6 16 60 40 10 40 70 97.4 20.25 6 12 M8x10 8.5 9.5 13.8
HGH 30HA 60 93 120.4 21.75
HGH 35CA 55 7.5 18 70 50 10 50 80 112.4 20.6 7 12 M8x10 10.2 16 19.6
HGH 35HA 72 105.8 138.2 22.5
HGH 45CA 70 9.5 20.5 86 60 13 60 97 139.4 23 10 12.9 M10x17 16 18.5 30.5
HGH 45HA 80 128.8 171.2 28.9
HGH 55CA 80 13 23.5 100 75 12.5 75 117.7 166.7 27.35 11 12.9 M12x18 17.5 22 29
HGH 55HA 95 155.8 204.8 36.4
HGH 65CA 90 15 31.5 126 76 25 70 144.2 200.2 43.1 14 12.9 M16x20 25 15 15
HGH 65HA 120 203.6 259.6 47.8
