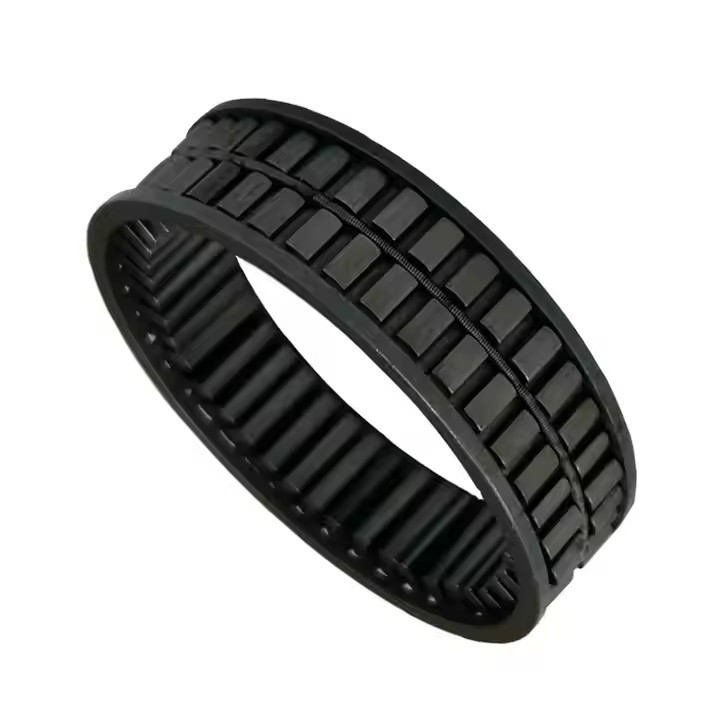

FE 8054 Z 25 Double Row Cage Sprag Clutch Bearing
Data Sheet
Item | FE8000Z |
Material | GCr15 |
Bore size | 54.76 m |
Outer dia. | 71.42 mm |
Width | 25 mm |
Torque | 2015 Nm |
Weight | 0.172 kg |
Item No. | 300543 |
Port | Shanghai;Ningbo |
Delivery time | 10 -15 days |
Package | singer package or as your requirements |
Characteristics
Width:16/19/25 mm
Operating temperature
max. 170°C
Indexing frequency
max. 5 Hz
Lubrication
Oil or grease lubrication
Delivered with corrosion protection.
Pre-grease on request.
Installation
Installation tolerances
Shaft h6; hub H6
Inner ring/shaft
steel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μm
Outer ring/housing
steel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μm
Constraints
The freewheel clutch insert element requires axial constraints on both sides.
Connecting parts
Hardening and grinding of the mating parts is necessary.
Chamfered shafts and hubs ease installation.
Bearing
Freewheel clutch insert elements are not self-centering.
External bearing support to define the gap between mating parts
(inner and outer rings) is necessary.
Components
Components | |
Freewheel Spring Cage Sprags |
Insert element FE 8000 Z Tension spring (Z) Stamped steel / Hardened bearing steel Start gap height h0 = 8.33 mm |
- Thrust rings | - |
- Ball bearing | - |
- Roller bearing | - |
- Lubrication | - |
- Seal | - |
Diifferent Sizes For Your Reference
Drawing legend:
d = inner diameter D = outer diameter W = width T = torque
Designation |
d [mm] |
D [mm] |
W [mm] |
Tnom [Nm] |
Weight [kg] |
Item no. |
FE 8038 Z 16 | 38.09 | 54.75 | 16 | 609 | 0.082 | 300527 |
FE 8038 Z 19 | 38.09 | 54.75 | 19 | 801 | 0.096 | 300528 |
FE 8040 Z 16 | 40.00 | 56.66 | 16 | 668 | 0.084 | 300530 |
FE 8040 Z 19 | 40.00 | 56.66 | 19 | 880 | 0.102 | 300531 |
FE 8044 Z 16 | 44.45 | 61.11 | 16 | 799 | 0.091 | 300535 |
FE 8044 Z 19 | 44.45 | 61.11 | 19 | 1.052 | 0.112 | 300536 |
FE 8049 Z 16 | 49.72 | 66.38 | 16 | 923 | O.IOO | 300538 |
FE 8049 Z 19 | 49.72 | 66.38 | 19 | 1.201 | 0.118 | 300539 |
FE 8050 Z 16 | 50.00 | 66.66 | 16 | 942 | O.IOO | 306637 |
FE 8050 Z 25 | 50.00 | 66.66 | 19 | 1,237 | 0.123 | 306638 |
FE 8054 Z 16 | 54.76 | 71.42 | 16 | 1,080 | 0.107 | 300541 |
FE 8054 Z 19 | 54.76 | 71.42 | 19 | 1,424 | 0.128 | 300542 |
FE 8054 Z 25 | 54.76 | 71.42 | 25 | 2,015 | 0.172 | 300543 |
FE 8060 Z 16 | 60.00 | 76.66 | 16 | 1,243 | 0.113 | 306639 |
FE 8060 Z 19 | 60.00 | 76.66 | 19 | 1,560 | 0.141 | 306640 |
FE 8060 Z 25 | 60.00 | 76.66 | 25 | 2,111 | 0.188 | 306641 |
FE 8072 Z 16 | 72.21 | 88.87 | 16 | 1,740 | 0.135 | 300548 |
FE 8072 Z 19 | 72.21 | 88.87 | 19 | 2,145 | 0.163 | 300549 |
FE 8072 Z 25 | 72.21 | 88.87 | 25 | 2,918 | 0.220 | 300550 |
FE 8079 Z 25 | 79.69 | 96.36 | 25 | 3,295 | 0.227 | 300551 |
FE 8080 Z 16 | 80.00 | 96.66 | 16 | 1,848 | 0.141 | 306642 |
FE 8080 Z 19 | 80.00 | 96.66 | 19 | 2,278 | 0.176 | 306643 |
FE 8080 Z 25 | 80.00 | 96.66 | 25 | 3,101 | 0.235 | 306644 |
FE 8083 Z 25 | 83.34 | 100.00 | 25 | 3,640 | 0.245 | 300553 |
FE 8100 Z 16 | 100.00 | 116.66 | 16 | 2,632 | 0.188 | 306645 |
FE 8100 Z 19 | 100.00 | 116.66 | 19 | 3,303 | 0.228 | 306646 |
FE 8100 Z 25 | 100.00 | 116.66 | 25 | 4,535 | 0.306 | 306647 |
FE 8103 Z 16 | 103.23 | 119.89 | 16 | 2,887 | 0.184 | 300556 |
FE 8103 Z 19 | 103.23 | 119.89 | 19 | 3,582 | 0.290 | 300557 |
FE 8103 Z 25 | 103.23 | 119.89 | 25 | 4,920 | 0.300 | 300558 |
FES 8123 Z 25 | 123.34 | 140.00 | 25 | 6,600 | 0.370 | 300561 |
FE 8123 Z 25 | 123.88 | 140.54 | 25 | 6,604 | 0.370 | 300559 |
FE 8126 Z 25 | 126.22 | 142.88 | 25 | 6,744 | 0.375 | 300562 |
FE 8140 Z 25 | 140.00 | 156.66 | 25 | 7,388 | 0.410 | 300565 |
FE 8150 Z 25 | 150.00 | 166.66 | 25 | 8,272 | 0.440 | 300567 |
FE 8160 Z 25 | 160.00 | 176.66 | 25 | 9,096 | 0.470 | 306344 |
FE 8180 Z 25 | 180.00 | 196.66 | 25 | 10,463 | 0.520 | 306274 |
FE 8220 Z 25 | 220.00 | 236.66 | 25 | 14,060 | 0.640 | 306148 |
The specified nominal torque is based on sufficient stiffness of mating parts.
