Home > products > Hybrid Ceramic Bearings > Full Si3N4 Hybrid Ceramic Bearings 608CE Deep Groove Ball Bearing

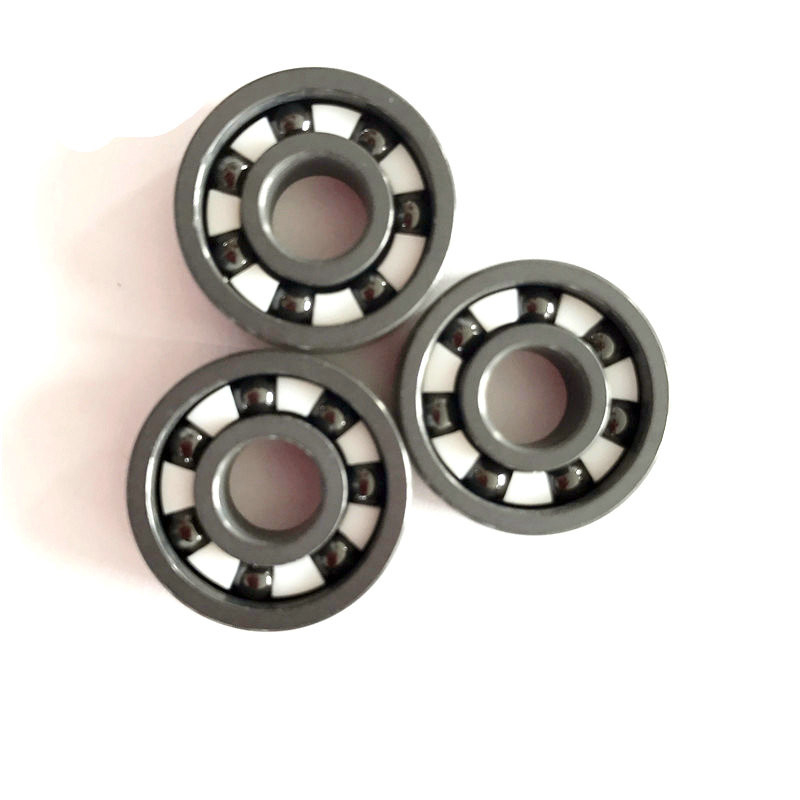

Full Si3N4 Hybrid Ceramic Bearings 608CE Deep Groove Ball Bearing

Product Details

Place of Origin: China

Brand Name: SFT

Model Number: 608CE

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Get Best Price
Highlight:

Hybrid Ceramic Ball Bearings 608CE

,

Full Si3N4 Sft Bearings

,

PTFE cage Hybrid Ceramic Bearings

Number Of Row:
Single Row
Material Of The Balls:
Si3N4 Ceramic
Material:
Full Si3N4
Outside Diameter:
10 - 155 Mm
Cage:
PTFE
Structure:
Deep Groove
Number Of Row:
Single Row
Material Of The Balls:
Si3N4 Ceramic
Material:
Full Si3N4
Outside Diameter:
10 - 155 Mm
Cage:
PTFE
Structure:
Deep Groove
Full Si3N4 Hybrid Ceramic Bearings 608CE Deep Groove Ball Bearing

Full bearings ceramic 608CE 608 deep groove ball bearing



Our hybrid ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged

The full ceramic ball bearings listed below are supplied with rings and balls made from zirconium dioxide (ZrO2). These zirconia bearings are available as full complement (no cage) or with cages made from PTFE, PEEK or 316 stainless steel.

These are non magnetic, non-conductive and highly corrosion resistant to most chemicals although ZrO2 bearings are not recommended for prolonged contact with steam. Full complement bearings or those with a 316 stainless cage can be used up to 400°C while bearings with a PEEK or PTFE cage can cope with temperatures of up to 250°C. For temperatures below -70°C, PTFE or 316 stainless steel cages are preferred. Standard radial clearance for full ceramic bearings is C0 but other clearances can be supplied to order.

ZrO2 ceramic bearings are generally used for their extreme temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes can be supplied on request.



Features of ceramic ball bearings:

(1) Shield / closure: Open, Teflon Sealed, Rubber Seals,2 Metal Shield

(2) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9

(3) Vibration level codes: V4, V3, V2, V1

(4) Internal clearance codes: C0,C2, C3, C4, C5

(5) Material: AISI52100, AISI440C, AISI304, AISI316, Ceramic

(6) Retainer: PTFE, Nylon, PEEK Or Stainless Steel



Application of ceramic ball bearings:

1. Ceramic ball bearing has the characteristics of high temperature resistance, cold resistance, abrasion resistance, corrosion resistance and insulation, and can be used in extremely bad environment and special conditions.

2. Ceramic ball bearings can be widely used in aviation, spaceflight, navigation, petroleum, chemical industry, automobile, electronics, metallurgical, power, textile, pumps, medical equipment and scientific research.



More choice:

N0.
Bore

O.D
Width Chamfer Load Rating Maximuum Seed Weight

mm

mm
mm mm
Dynamic
Cr

Static
Cor

Grease
r/min

Oil
r/min

Kg/pcs
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.006
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1.0 16 10.3 10000 14000 0.115
6008 40 68 15 1.0 16.8 11.5 8000 11000 0.19
