Product Details
Place of Origin: China
Brand Name: SFT
Model Number: 623
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: carton,pallet
Delivery Time: 20-45DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Lubrication: |
Grease Or Oil |
Feature: |
Long Life, High Speed,Low Noise |
Seals Type: |
Open,zz 2rs,rz |
Type: |
CERAMIC BALL |
Clearance: |
C2,C3,C4,C5 |
Material: |
Si3N4/ZrO2/GCr15/Stainless Steel |
Lubrication: |
Grease Or Oil |
Feature: |
Long Life, High Speed,Low Noise |
Seals Type: |
Open,zz 2rs,rz |
Type: |
CERAMIC BALL |
Clearance: |
C2,C3,C4,C5 |
Material: |
Si3N4/ZrO2/GCr15/Stainless Steel |

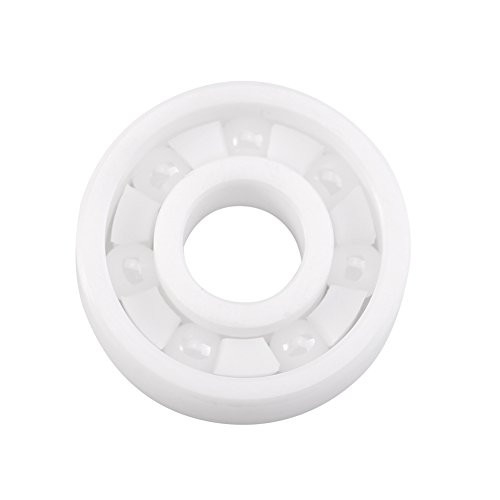

Hybrid Ceramic Ball Bearing Abec 7 3x10x4 Fishing Reel Bearing
Ceramic bearings VS steel bearing
Compared to steel version, ceramic materials offer superior corrosion and heat resistance, higher dimensional stability, and lower density, which facilitates high speed.
Regarding to the corrosion resistance, 440 stainless bearings have moderate corrosion resistance but struggle with many stronger chemicals and salt water. 316 stainless steel has much greater chemical resistance and can used at sea above the waterline or for temporary submersion if washed down. Ceramics have excellent corrosion resistance to many chemicals including concentrated acids and alkalis and can be permanently submerged in seawater without corroding.
High speed performance. Ceramic balls are about 40% as dense as steel, which means less centrifugal force is developed on the bearings resulting in suppression of heat generation between the balls and outer ring. The result is superior high-speed performance and they can operate at higher speeds.
Ceramic balls have a smoother finish than steel, A high quality steel ball bearing is consider grade 25. The grade number refers to the tolerance per millionth of an inch. A grade 25 is accurate to 25/1,000,000 of an inch. Less expensive ball bearings may be grade 300, which are less round, at 300/1,000,000 of an inch. Ceramic bearings may be grade 5 or 3 , which is a rounder ball bearing. so the vibration and spindle deflection is reduced allowing higher speeds and better performance.
As for the effect on the bearing races, steel balls have a tendency to create cracks in the bearings’ races, while ceramic balls with their smooth finish, actually polish the races over time. The hardness of ceramic balls also allows them to crush any particles that make their way into the ceramic ball bearing, so they don’t cause damage to the races.
Features of ceramic ball bearings:
(1) Shield / closure: Open, Teflon Sealed, Rubber Seals,2 Metal Shield
(2) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
(3) Vibration level codes: V4, V3, V2, V1
(4) Internal clearance codes: C0,C2, C3, C4, C5
(5) Material: AISI52100, AISI440C, AISI304, AISI316, Ceramic
(6) Retainer: PTFE, Nylon, PEEK Or Stainless Steel
Application of ceramic ball bearings:
Deep groove ball bearings are widely used in gearboxes.instruments.motors. household appliances.
internal combustion engines.transportation vehicles. agricultural machinery.construction machinery.
construction machinery. roller roller skates. yo-yo. etc.
model |
Fishing Reel Bearing |
Size |
3*10*4mm |
Material |
ceramic steel,Chrome Steel,stainless steel,Gcr15 Chrome Steel |
Service |
Design Service |
Weight |
0.002kg |
Feature |
long life, high speed,Low Noise,Low friction,High temperature resistance |
Application |
Miniature bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type. |
Packaging |
1.Single box: plastic bag+single box |
